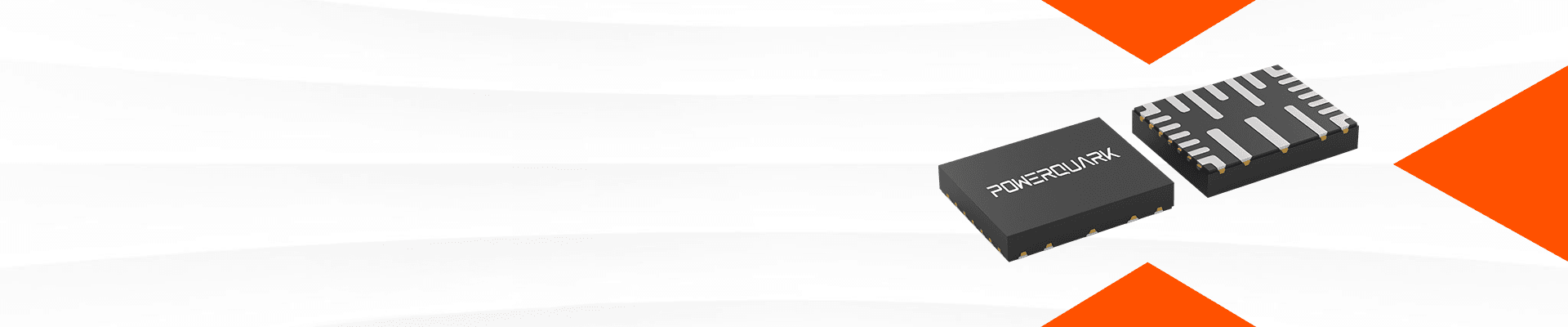

PQ87580Q

36V / 100W Automotive Fully Integrated USB PD solution with Integrated Buck-boost Converter

PQ87580QPQ87580Q

PQ87580Q

36V / 100W Automotive Fully Integrated USB PD solution with Integrated Buck-boost Converter

The PQ87580Q is a fully integrated USB PD solution. It integrates a Buck-boost converter with 4 integrated power switches and a USB PD controller. The PQ87580Q operates over 4.5V to 36V wide input voltage and can output 3.3V to 22.5V voltage to support a variety of applications. It also supports up to 5A continuous output current under certain input supply range.
PQ87580Q
The PQ87580Q is a fully integrated USB PD solution. It integrates a Buck-boost converter with 4 integrated power switches and a USB PD controller. The PQ87580Q operates over 4.5V to 36V wide input voltage and can output 3.3V to 22.5V voltage to support a variety of applications. It also supports up to 5A continuous output current under certain input supply range.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Applications

More Solutions
Our in-vehicle charging solutions cover different power levels, feature high integration, and support a variety of public and proprietary protocols.
2024.10.23
Learn more
Parameter NameParameter Value
VIN range4.5-28V
Abs. VIN (max)40V
TypeBuck-boost+PD
Short to battery√
DPDMDPDM
PDPD 2.0/3.1 + PPS
Proprietary protocolFC/AFC/FCP
FeaturesSpread spectrum, FLT indication, Wettable Flank Power sharing, NTC, Low-Battery detection
Parameter NameParameter Value
PackageQFN22 4x5
TypeBuckBoost+Protocol
Output Power100W (20V 5A)
Short to Battery/Vout√
IEC-ESD√
DPDM ProtocolApple3A/Samsung 2A/DCP/CDP/FC/FCP
CC ProtocolPD 3.1+PPS
Single/Dual PortsSingle
Parameter NameParameter Value
VIN range4.5-28V
Abs. VIN (max)40V
TypeBuck-boost+PD
Short to battery√
DPDMDPDM
PDPD 2.0/3.1 + PPS
Proprietary protocolFC/AFC/FCP
FeaturesSpread spectrum, FLT indication, Wettable Flank Power sharing, NTC, Low-Battery detection
PackageQFN22 4x5
TypeBuckBoost+Protocol
Output Power100W (20V 5A)
Short to Battery/Vout√
IEC-ESD√
DPDM ProtocolApple3A/Samsung 2A/DCP/CDP/FC/FCP
CC ProtocolPD 3.1+PPS
Single/Dual PortsSingle
