PQ8746 36V / 140W Buck-Boost Converter with Low-Side MOSFETs Integrated and
I2C Interface
PQ8746
PQ8746 36V / 140W Buck-Boost Converter with Low-Side MOSFETs Integrated and
I2C Interface

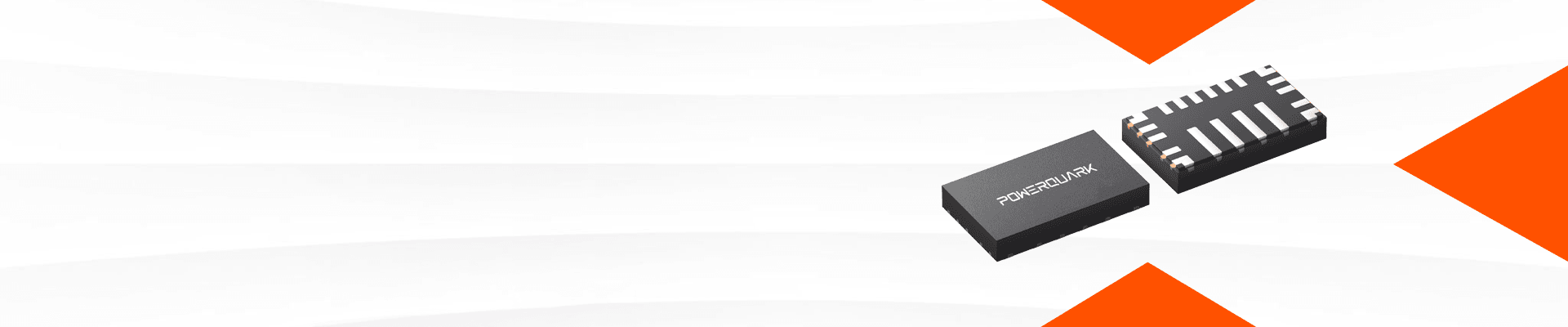

The PQ8746 is a buck-boost converter with two low-side integrated power switches capable of regulating the output voltage at, above, or below the input voltage. The PQ8746 operates over 3.7V to 36V wide input voltage and can output 1V to 29V voltage to support a variety of applications. The PQ8746 is suitable for USB power delivery application. It can work well with external USB PD controller through I2C interface and provide flexibility of programmable features. The PQ8746 employs current mode control scheme. The switching frequency could be set at 280kHz/420kHz/560kHz through I2C. The PQ8746 also provides optional spread spectrum to optimize EMI performance. The PQ8746 offers output over-voltage protection, cycle-by-cycle current limit, output short circuit protection, average output current limit and thermal shutdown protection. The PQ8746 is available in 20-pin 3mm x 5mm Wettable Flank QFN packages.
