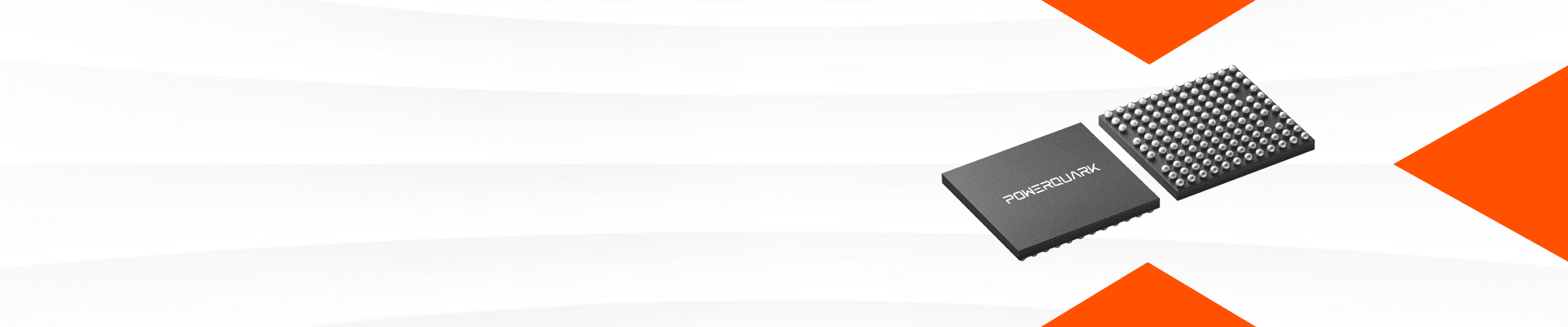

PQ8562 is a high efficiency, 5V/12A slave charger using a switched cap architecture. With its internal 17 low Rdson MOSFET and external flying caps, it can be configured into six different operation modes: forward 4:1/2:1/1:1 charger mode and reverse 1:4/1:2/1:1 converter mode. The switched cap architecture and the integrated FETs are optimized to enable a 50% cycle, decreasing the cable current to be quarter of the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. PQ8562 adopts 132pin CSP 4.885mm X 4.485mm package.
