High Efficiency 8-A Switched Capacitor Direct Charger with UFCS PHY Integrated
PQ8549D

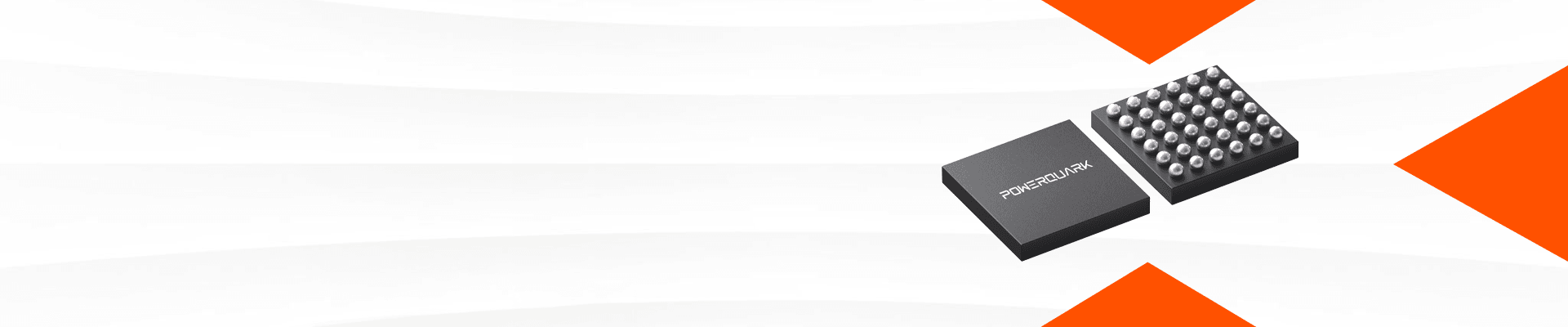

PQ8549D is a high efficiency battery charging solution using a switched cap architecture. The switched cap architecture and the integrated FETs are optimized to enable a 50% cycle, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. PQ8549D adopts 36pin CSP 2.545mm x 2.605mm package.
