PQ8541

Single Cell High Efficiency 8-A Switched Capacitor Direct Charger

PQ8541PQ8541

PQ8541

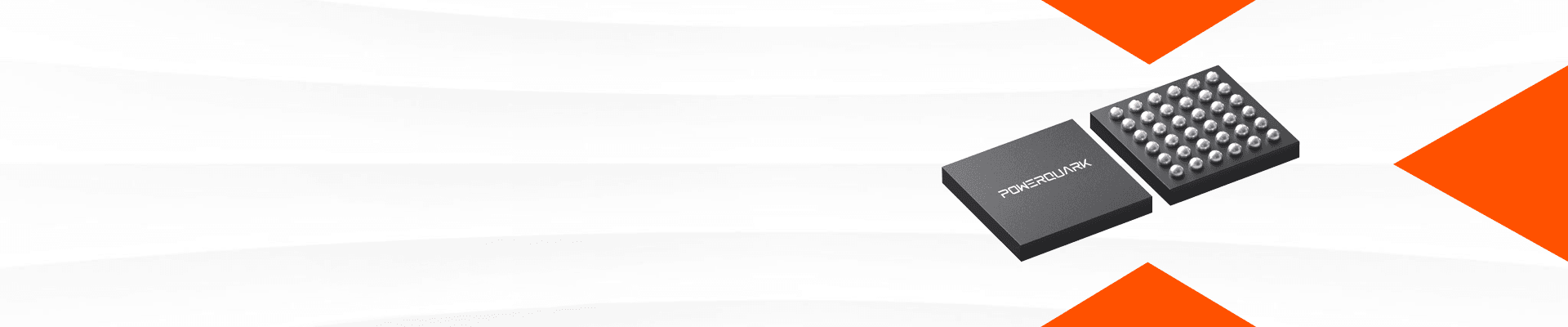

PQ8541 is a 97% efficiency, 8-A battery charging solution using a switched cap architecture. The switched cap architecture and the integrated FETs are optimized to enable a 50% cycle, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. PQ8541 adopts 56-pin CSP 2.68mm x 2.68mm package.
PQ8541
PQ8541 is a 97% efficiency, 8-A battery charging solution using a switched cap architecture. The switched cap architecture and the integrated FETs are optimized to enable a 50% cycle, allowing the cable current to be half the current delivered to the battery, reducing the losses over the charging cable as well as limiting the temperature rise in the application. PQ8541 adopts 56-pin CSP 2.68mm x 2.68mm package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
Pout_Typ.40W
VBUS range3.3~11V
Abs. Vbus (max)20V
Vout range2.7~5V
Abs. Vout (max)6V
Parameter NameParameter Value
Max Charge Current8A
Typ. Quiescent Current12uA
ADC resolution12 bit
IBUS accuracy±5%
PackageWLCSP36-2.685mm X 2.685mm
Parameter NameParameter Value
Pout_Typ.40W
VBUS range3.3~11V
Abs. Vbus (max)20V
Vout range2.7~5V
Abs. Vout (max)6V
Max Charge Current8A
Typ. Quiescent Current12uA
ADC resolution12 bit
IBUS accuracy±5%
PackageWLCSP36-2.685mm X 2.685mm
