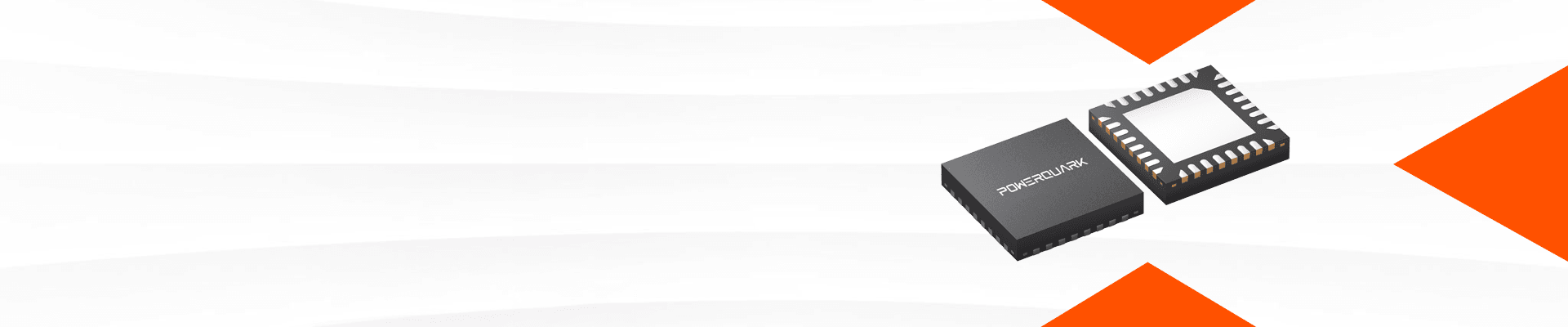

PQ8201

High Efficiency, Synchronous Boost Controller

PQ8201PQ8201

PQ8201

The PQ8201 is a synchronous boost controller. It supports very wide input and output voltage range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The PQ8201 supports input current limit, output current limit and over temperature protections to ensure safety under different abnormal conditions. The PQ8201 adopts 32 pin QFN 4x4 package.
PQ8201
The PQ8201 is a synchronous boost controller. It supports very wide input and output voltage range. The driver voltage is set to 10V to fully utilize external MOSFETs for highest efficiency. The PQ8201 supports input current limit, output current limit and over temperature protections to ensure safety under different abnormal conditions. The PQ8201 adopts 32 pin QFN 4x4 package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VIN range2.7-30V
Abs. VIN (max)40V
VOUT rangeVIN-36V
MOSext.
Fsw200kHz ~ 600kHz
Prog. VoutPWM
Parameter NameParameter Value
Peak current limit20A
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
FPWM√
PackageQFN 4x4
Parameter NameParameter Value
VIN range2.7-30V
Abs. VIN (max)40V
VOUT rangeVIN-36V
MOSext.
Fsw200kHz ~ 600kHz
Prog. VoutPWM
Peak current limit20A
Input ILIM√
Constant Current Mode√
IOUT monitorILIM pin
FPWM√
PackageQFN 4x4
