High Efficiency, Synchronous 32V/2A Buck Converter
PQ8109Q
High Efficiency, Synchronous 32V/2A Buck Converter

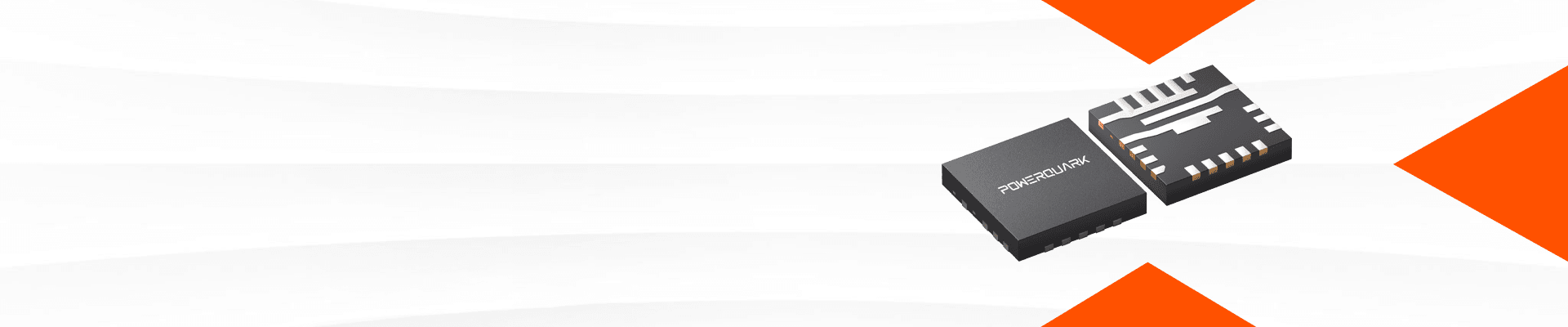

PQ8109Q is a synchronous buck converter with a wide input voltage from 4.4V to 32V. The PQ8109Q regulates the output voltage at a fixed 5.1V or customized voltage by setting the divider resistor. It also provides high accurate output current limit. The converter enters Constant Current (CC) Mode in case the output reaches the setting current limit. The total output power can be programmed by a resistor, which makes it easy for constant power (CP) control. PQ8109Q integrates 45mΩ high side NMOS and 30mΩ low side NMOS to achieve high efficiency. Besides, it provides low side gate driver (LSD) to drive external NMOS and works with build-in NMOS. PQ8109Q adopts programmable line drop compensation, programmable frequency setting with minimum external components, maximum functions can be achieved for user’s different applications. PQ8109Q also supports full protections including under voltage protection, over voltage protection, short current protection and auto-restart, over temperature protection. PQ8109Q adopts 19 pin QFN 3x3 package.
