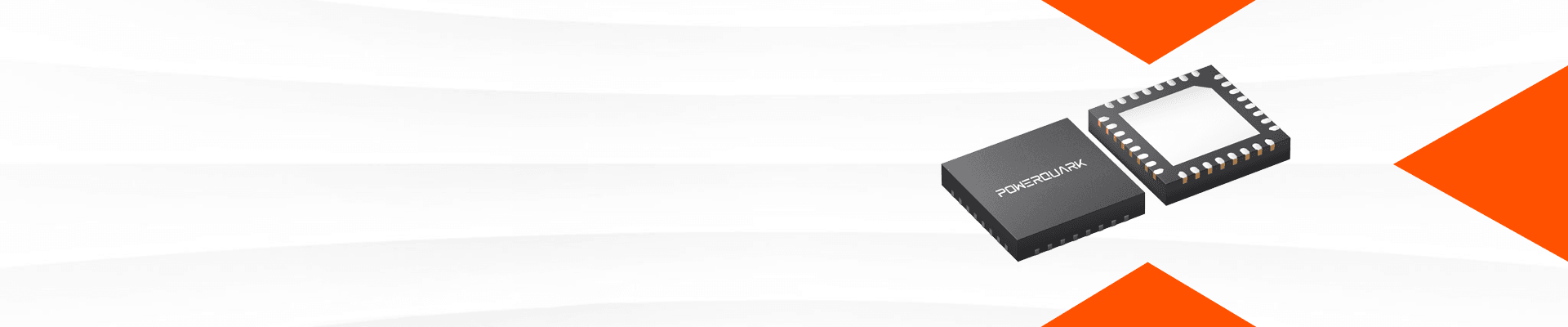

The PQ6104 is a triple-channel switching mode power supply which is designed to drive AMOLED displays requiring VELVDD, VELVSS and VAVDD. It integrates a boost converter for VELVDD, an inverting buck-boost converter for VELVSS and a boost converter for VAVDD. The output voltage is highly precise and can be programmed by the external signal. For the portable device applications, size, power consumption and reliability are always in the first consideration. The PQ6104 uses a tiny package and it switches at a high frequency to minimize the inductor and the capacitor size. Besides, synchronous rectification (each rail) and Dual-phase (ELVSS only) topologies are used to maximize the power efficiency. The PQ6104 uses innovative technology enabling excellent output voltage regulation and line transient performance. All the output rails allow being programmed by MC pin in digital steps. The device provides programmable output current limit for ELVDD from 0.6~1.3A and can be disabled by MC function. The AVDD rail also has a selectable 150mA over load protection function. The over current protection for ELVDD and AVDD is disabled per default. Once the function is disabled, the device keeps switching until the inductor current reaches the internal limitation and stops switching by the short circuit protection. The device integrates full protection for itself from abnormal condition. The PQ6104 adopts 32 pin QFN 4x4 package.
