PQ5613D03

PQ5613D03PQ5613D03

PQ5613D03

PQ5613D03
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.575±0.020
VOCV hys. (mV)150
VODV (V)2.35
VODV hys. (mV)2.55
VDOC1 (mV)200
VDOC2 (mV)10.5
VSC (mV)40
VCOC (mV)-15
tDOC1 (ms)3750
Parameter NameParameter Value
tDOC2 (ms)16
tCOC (ms)16
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingPermit
UV latchDisable
OV latchDisable

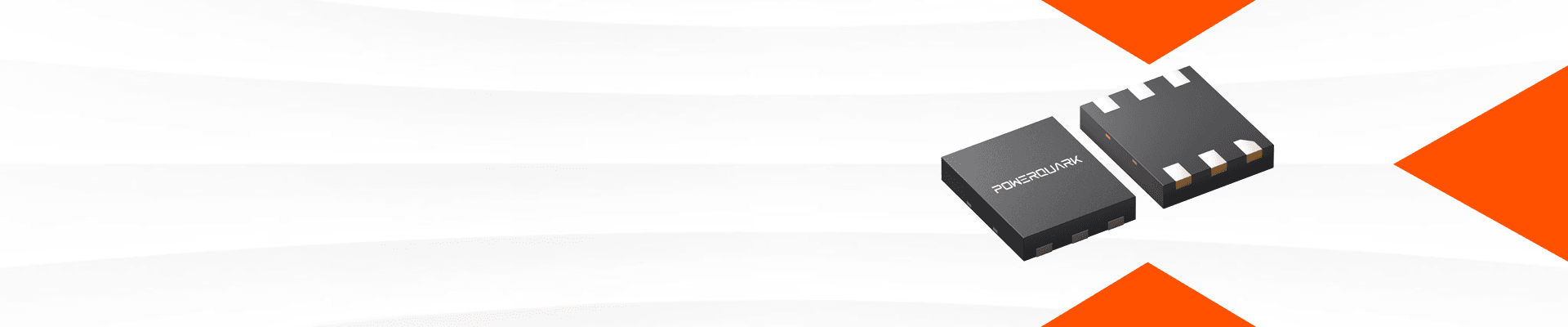

PackageDFN6L
Parameter NameParameter Value
VOCV(V)4.575±0.020
VOCV hys. (mV)150
VODV (V)2.35
VODV hys. (mV)2.55
VDOC1 (mV)200
VDOC2 (mV)10.5
VSC (mV)40
VCOC (mV)-15
tDOC1 (ms)3750
tDOC2 (ms)16
tCOC (ms)16
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingPermit
UV latchDisable
OV latchDisable
PackageDFN6L
