PQ5613A02

High Accuracy 1 Cell Li-ion/Li-polymer Battery Protection

PQ5613A02PQ5613A02

PQ5613A02

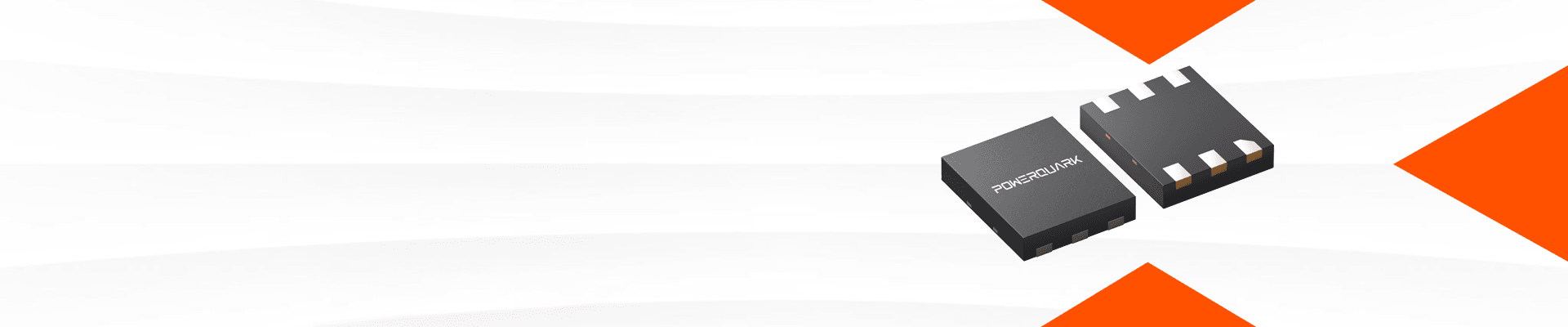

PQ5613 series are single cell Li-ion battery primary protection IC. It monitors the battery voltage and current, provide accurate protection and recovery threshold and control the external CHG and DSG FET to provide full array protection. The current is monitored via the voltage across the external sense resistor. For better system thermal performance, PQ5613 could enable the use of low sense resistor to reduce the power dissipations. PQ5613 is available in 6 pin DFN6L package.
PQ5613A02
PQ5613 series are single cell Li-ion battery primary protection IC. It monitors the battery voltage and current, provide accurate protection and recovery threshold and control the external CHG and DSG FET to provide full array protection. The current is monitored via the voltage across the external sense resistor. For better system thermal performance, PQ5613 could enable the use of low sense resistor to reduce the power dissipations. PQ5613 is available in 6 pin DFN6L package.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.520±0.020
VOCV hys. (mV)200
VODV (V)2.1
VODV hys. (mV)200
VDOC1 (mV)21
VDOC2 (mV)-
VSC (mV)100
VCOC (mV)-24
tDOC1 (ms)256
Parameter NameParameter Value
tDOC2 (ms)-
tCOC (ms)16
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingInhibit
UV latchDisable
OV latchDisable
PackageDFN6L
Parameter NameParameter Value
VOCV(V)4.520±0.020
VOCV hys. (mV)200
VODV (V)2.1
VODV hys. (mV)200
VDOC1 (mV)21
VDOC2 (mV)-
VSC (mV)100
VCOC (mV)-24
tDOC1 (ms)256
tDOC2 (ms)-
tCOC (ms)16
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingInhibit
UV latchDisable
OV latchDisable
PackageDFN6L
