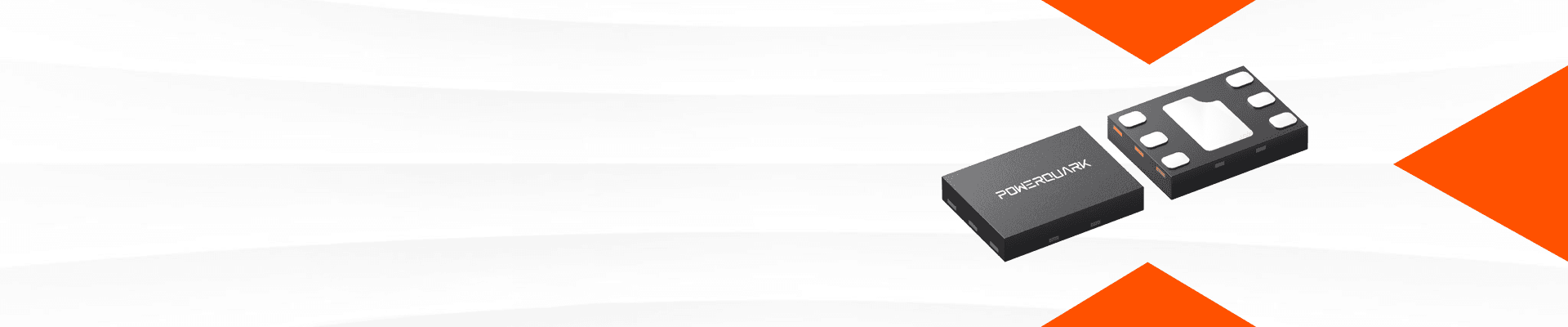

PQ5611AA4

High Accuracy Single Cell Li-ion/Li-polymer Battery Protector

PQ5611AA4PQ5611AA4

PQ5611AA4

High Accuracy Single Cell Li-ion/Li-polymer Battery Protector

PQ5611AA4DDFR device is a primary protection IC for single cell Li-ion or Li-polymer battery. It monitors the battery voltage and current, provide accurate protection and recovery threshold. It controls the external CHG and DSG FET to provide full protection.
PQ5611AA4
PQ5611AA4DDFR device is a primary protection IC for single cell Li-ion or Li-polymer battery. It monitors the battery voltage and current, provide accurate protection and recovery threshold. It controls the external CHG and DSG FET to provide full protection.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.580±0.020
VOCV hys. (mV)200
VODV (V)2.5
VODV hys. (mV)400
VDOC1 (mV)85
VDOC2 (mV)-
VSC (mV)200
VCOC (mV)-80
tDOC1 (ms)20
Parameter NameParameter Value
tDOC2 (ms)-
tCOC (ms)16
tSC (us)270
tOCV (ms)1024
tODV (ms)20
0V chargingInhibit
UV latchEnable
OV latchDisable
PackageDFN6L
Parameter NameParameter Value
VOCV(V)4.580±0.020
VOCV hys. (mV)200
VODV (V)2.5
VODV hys. (mV)400
VDOC1 (mV)85
VDOC2 (mV)-
VSC (mV)200
VCOC (mV)-80
tDOC1 (ms)20
tDOC2 (ms)-
tCOC (ms)16
tSC (us)270
tOCV (ms)1024
tODV (ms)20
0V chargingInhibit
UV latchEnable
OV latchDisable
PackageDFN6L
