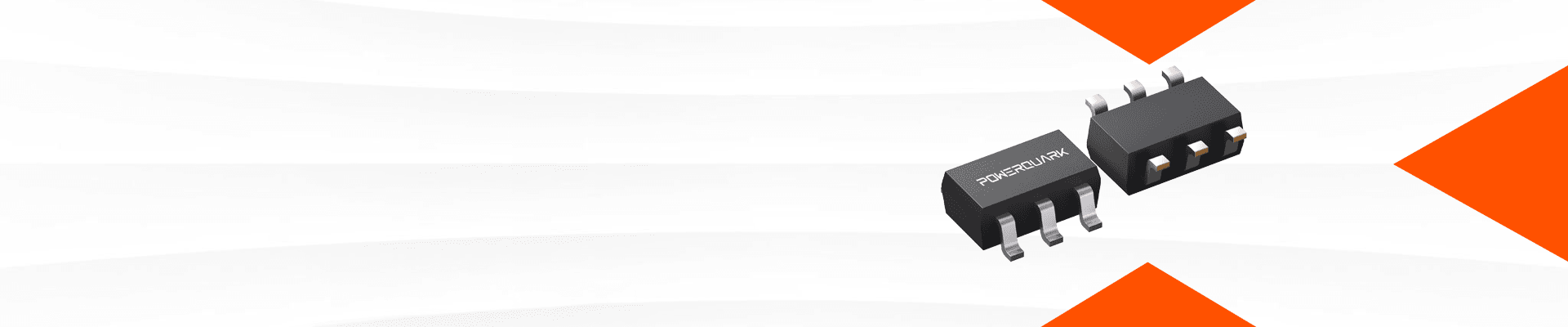

PQ3005 is a high performance, multi-mode fly-back PWM controller (CCM/QR/DCM). The controller built-in X-cap discharge function through HV pin, and safely discharge the X capacitors when the AC line is removed. Furthermore, extremely low standby power consumption and super-fast start-up time can be obtained by HV pin.
PQ3005 provides an adaptive switching frequency fold back to achieve higher efficiency in the whole loading range. At heavy load or full load, it operates up to maximum switching frequency. When loading decreases, it operates in green mode with valley switching for high efficiency. And at no load, the IC will operate in Burst mode to reduce power consumption.
PQ3005 provides functions of low start-up current, fast start-up, low standby power consumption. The burst mode with extremely low operation current (240uA) and significantly reduces standby power consumption to meet the efficiency regulations.
The controller integrates a boost circuit, which is especially suitable for applications with a wide output voltage range, reducing power consumption and greatly reducing peripheral devices.
PQ3005 integrated the adaptive over current protection (AOCP), which allows controlling the maximum output current from primary-side. The AOCP is specially designed for USB-PD solutions, together with PD controller, such as PQ21xx serials. The AOCP can reduce the current stress of secondary synchronous rectification.
The PQ3005 offers comprehensive protection to prevent the circuit from damage under abnormal conditions.
